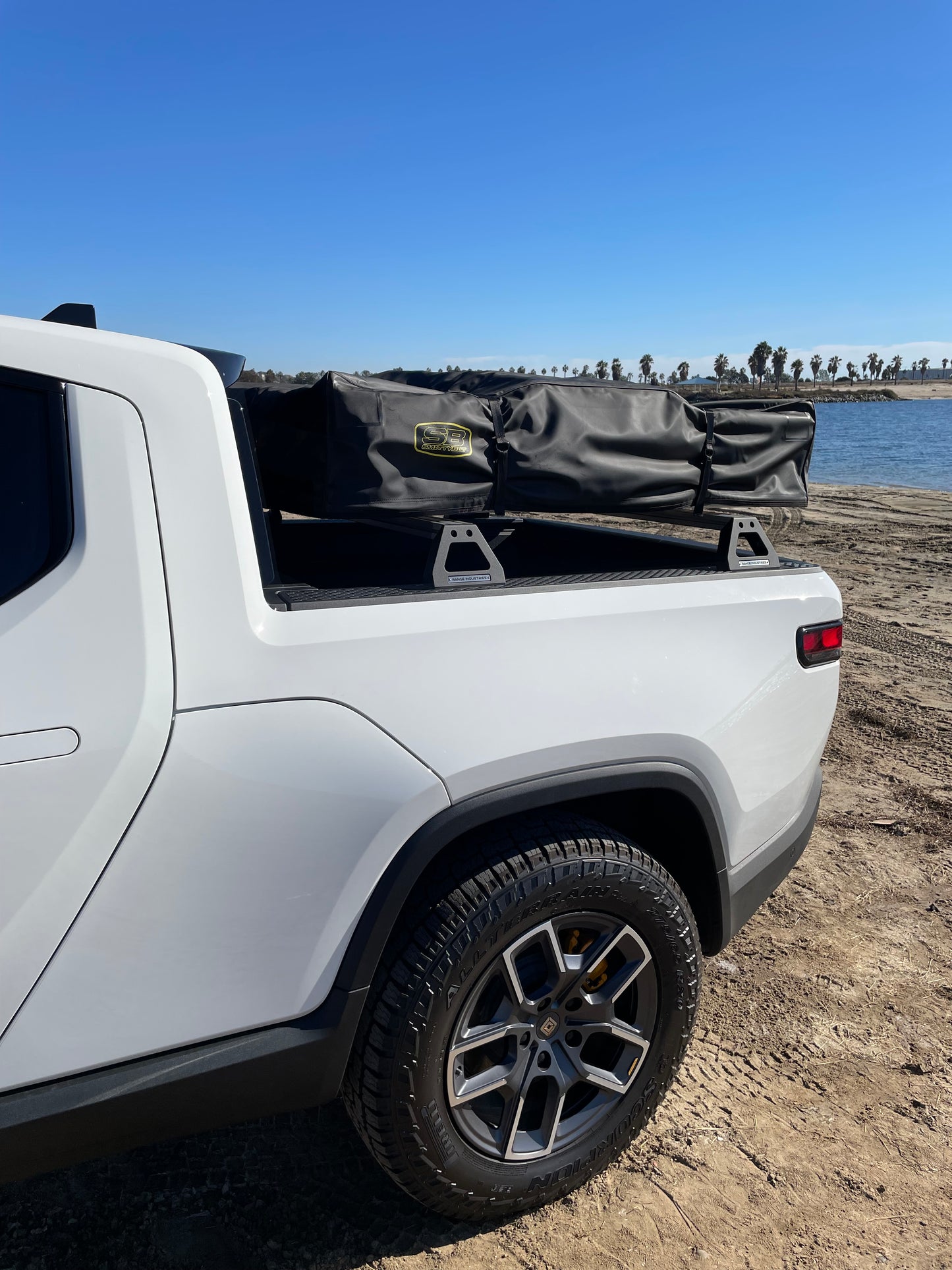

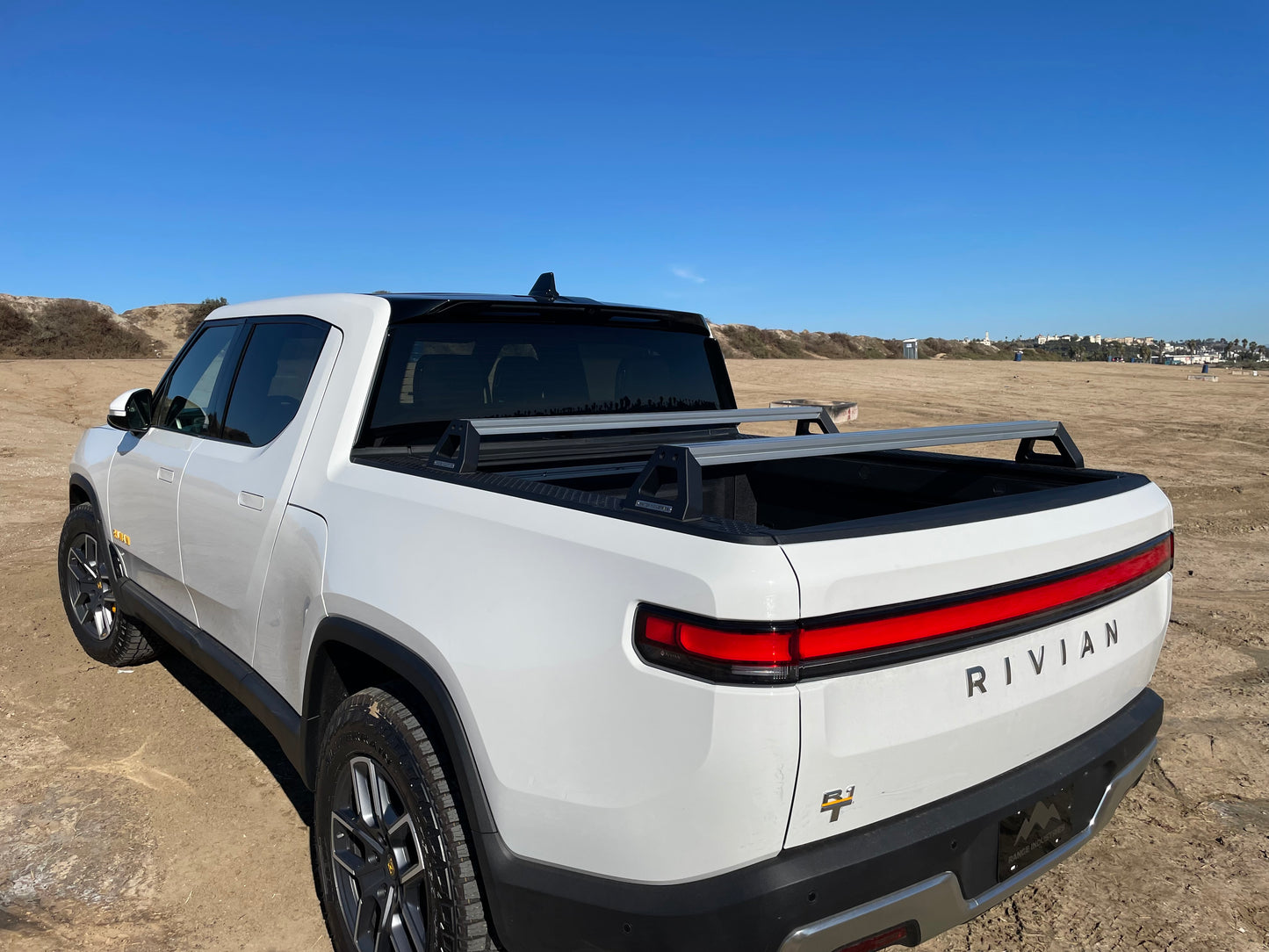

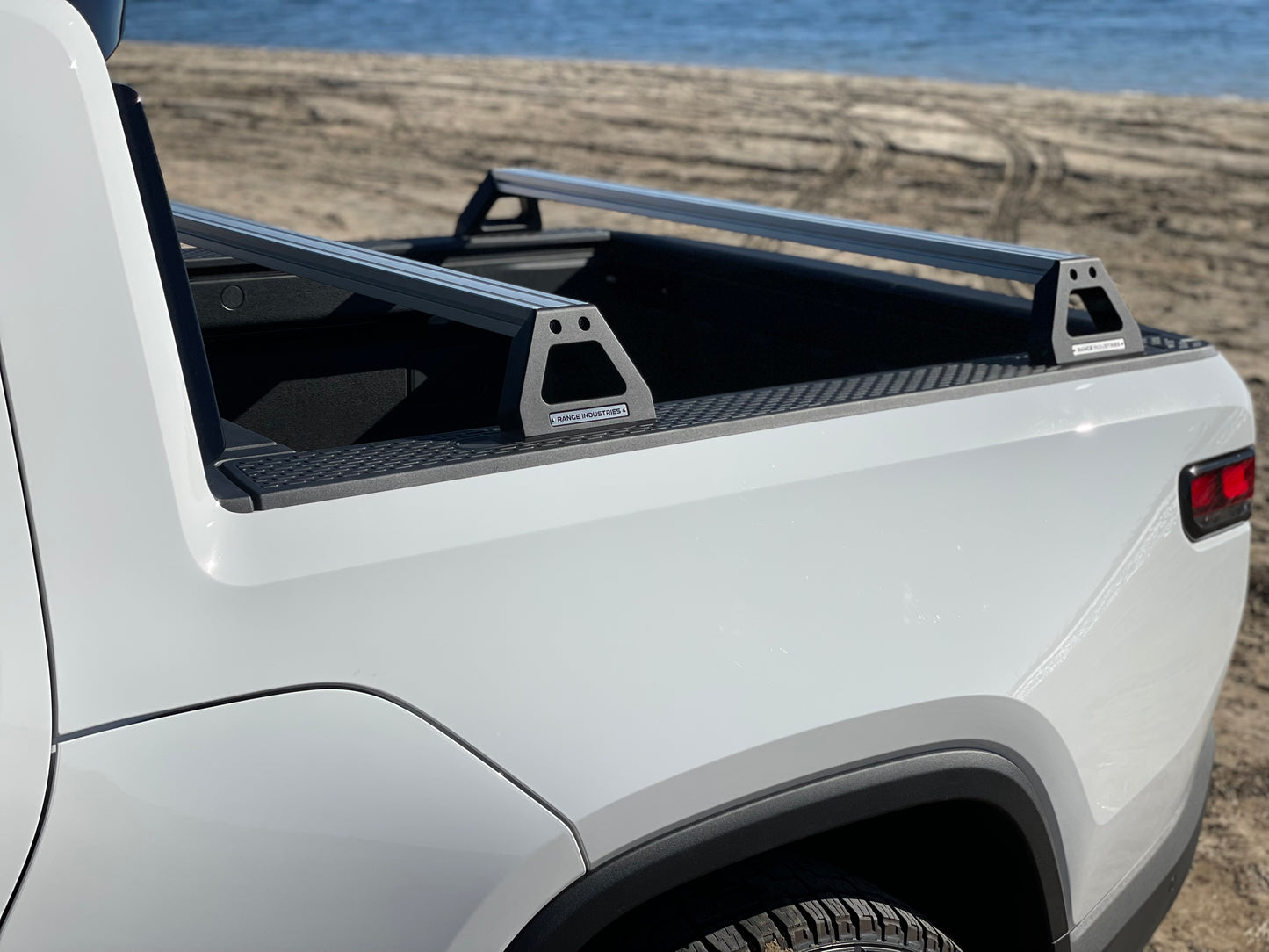

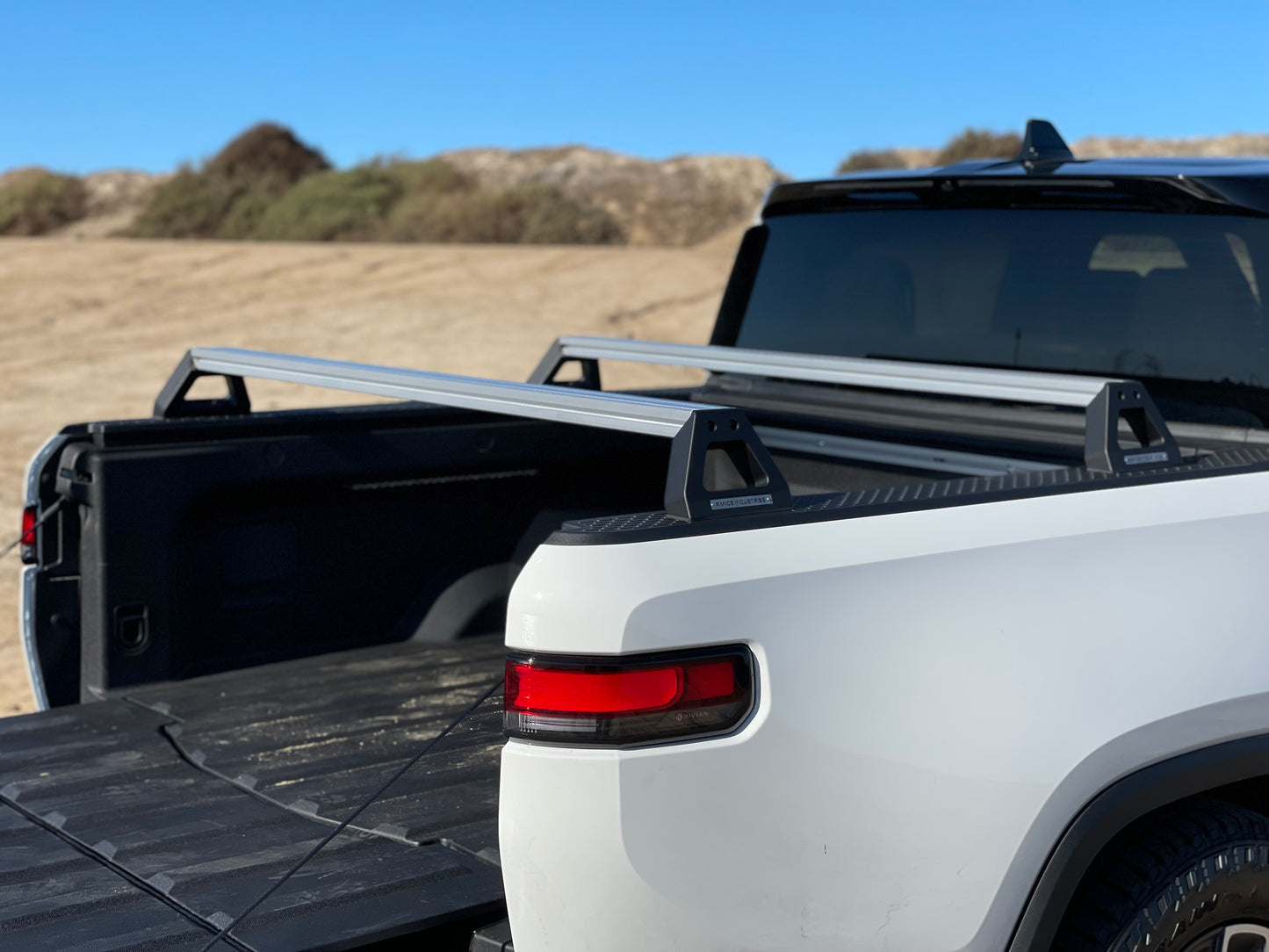

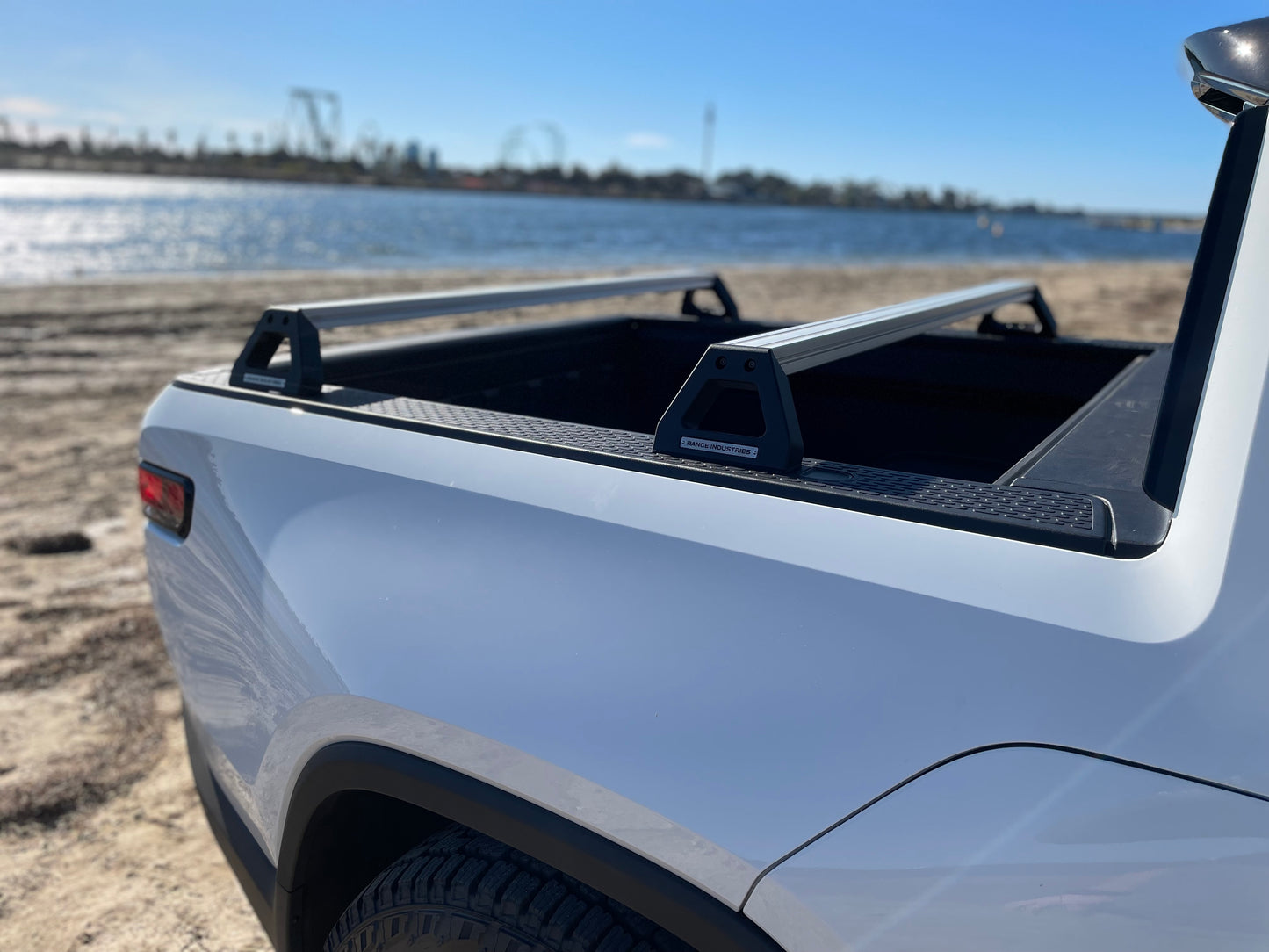

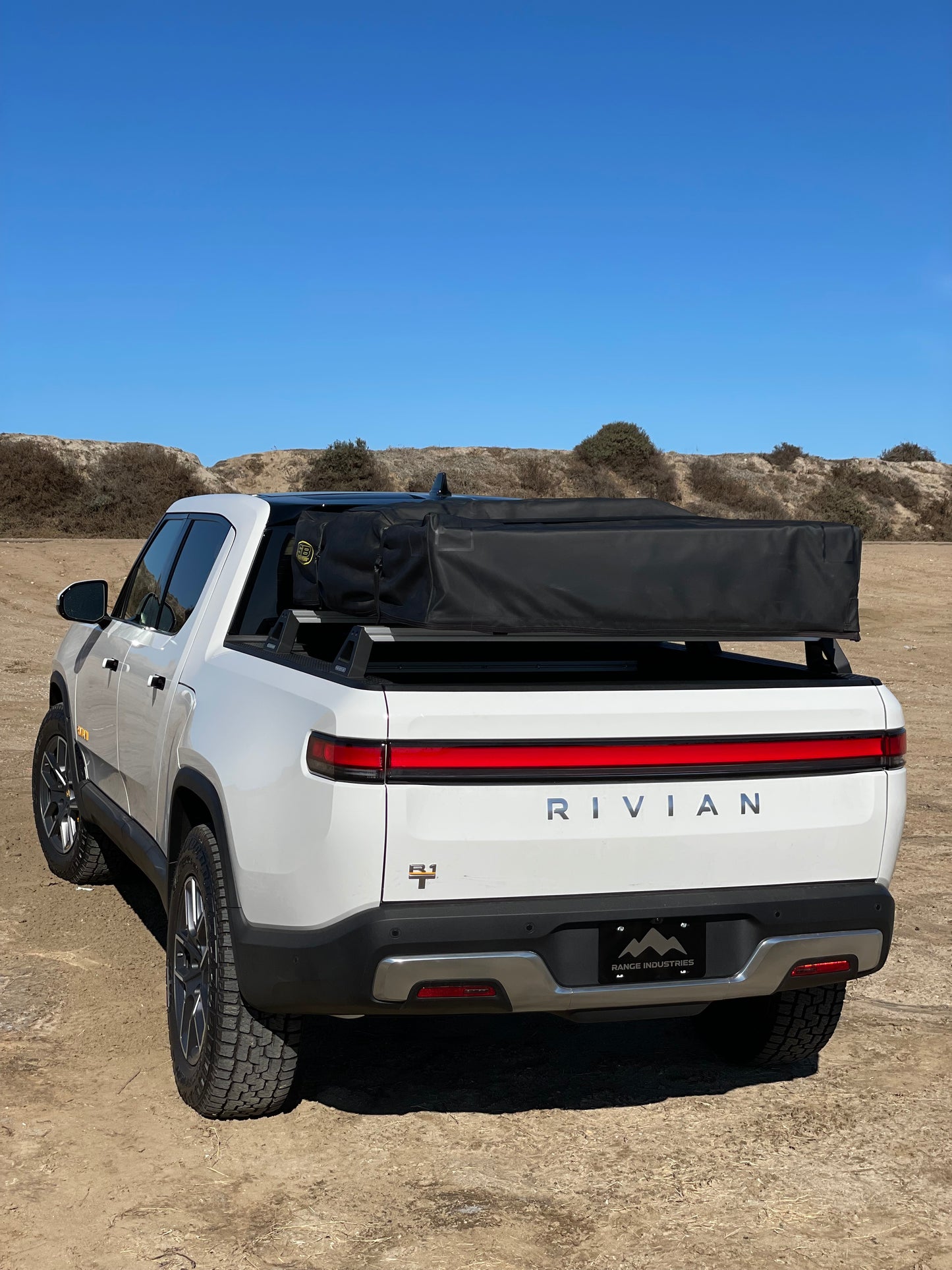

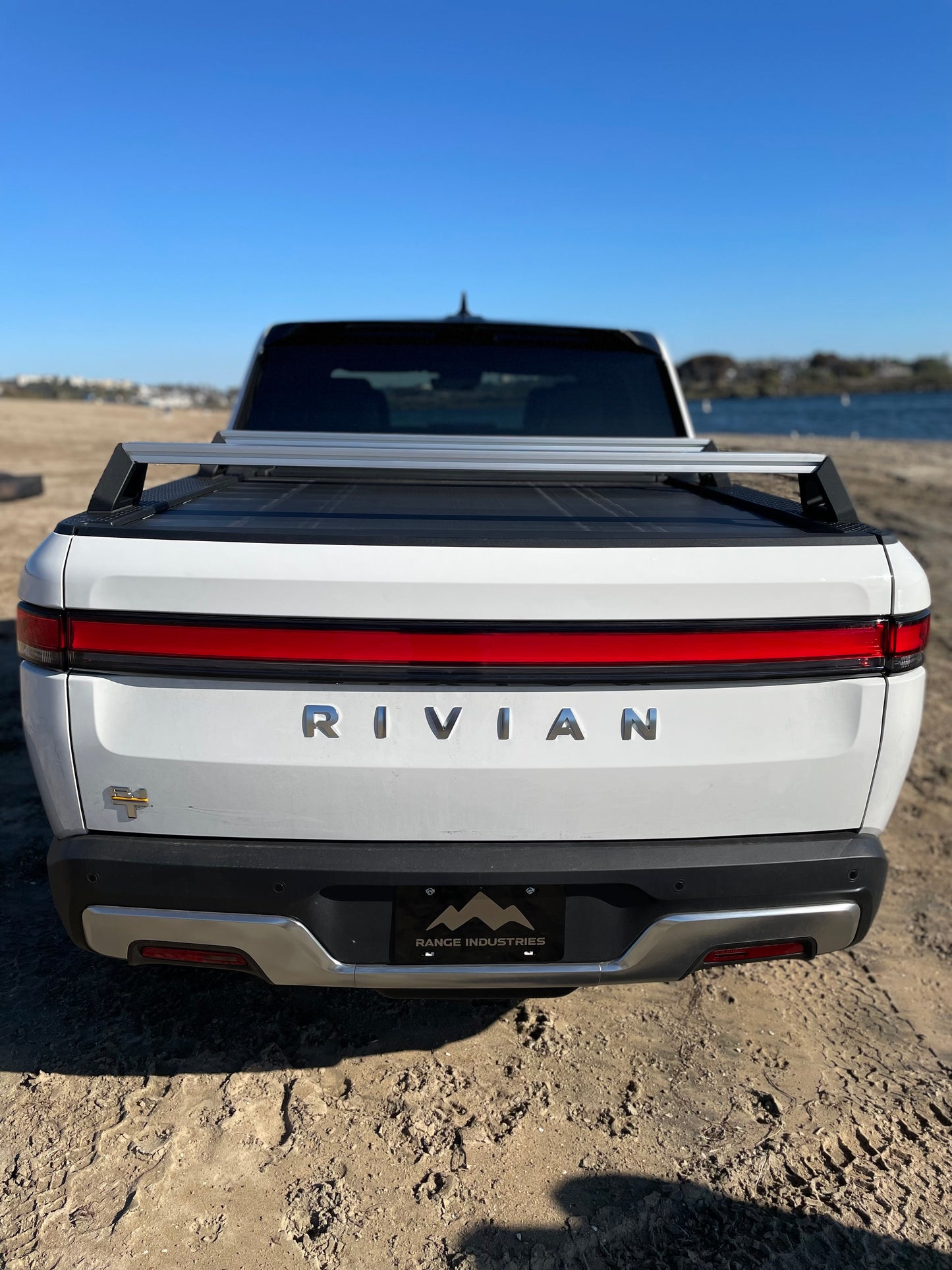

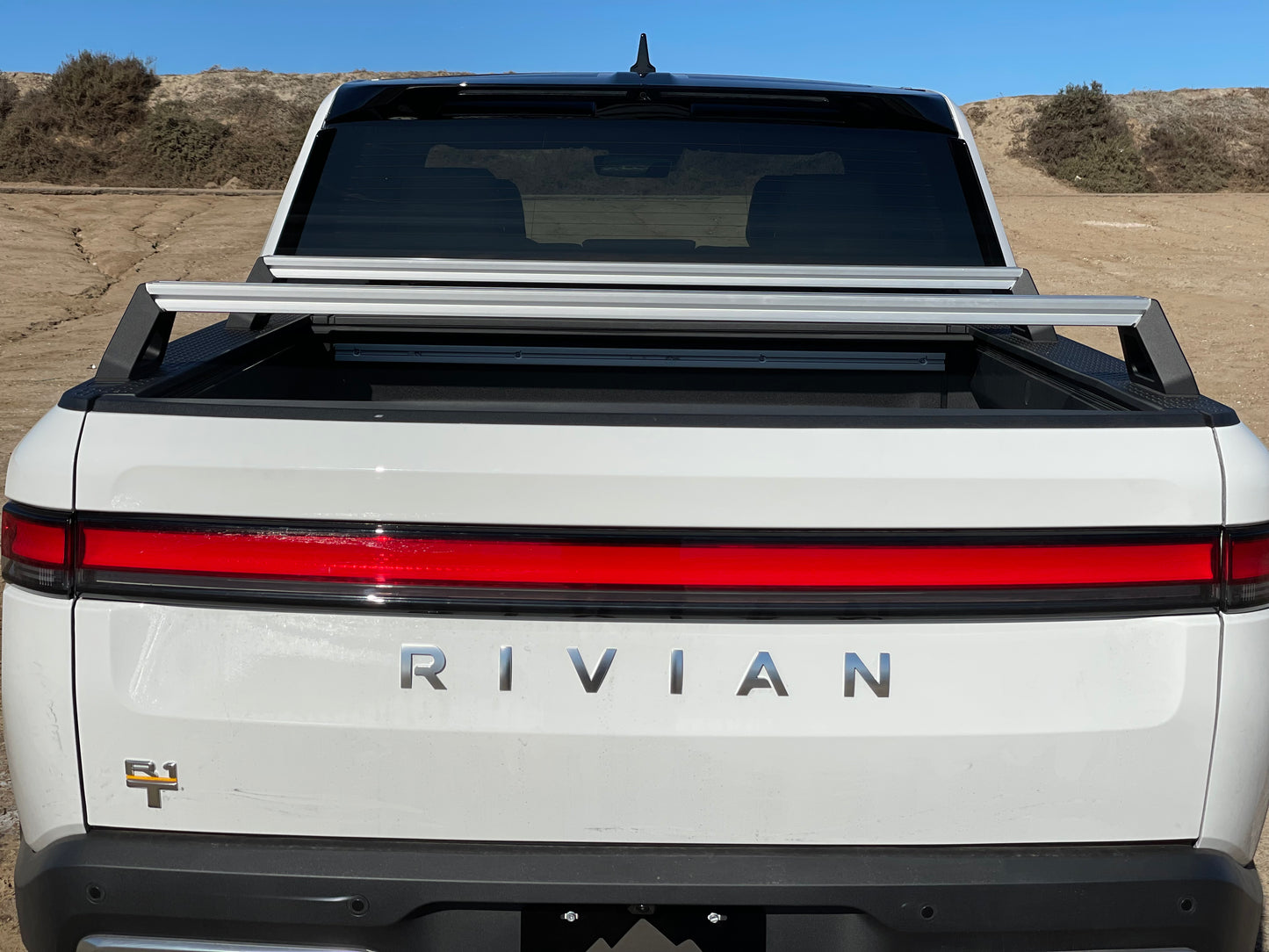

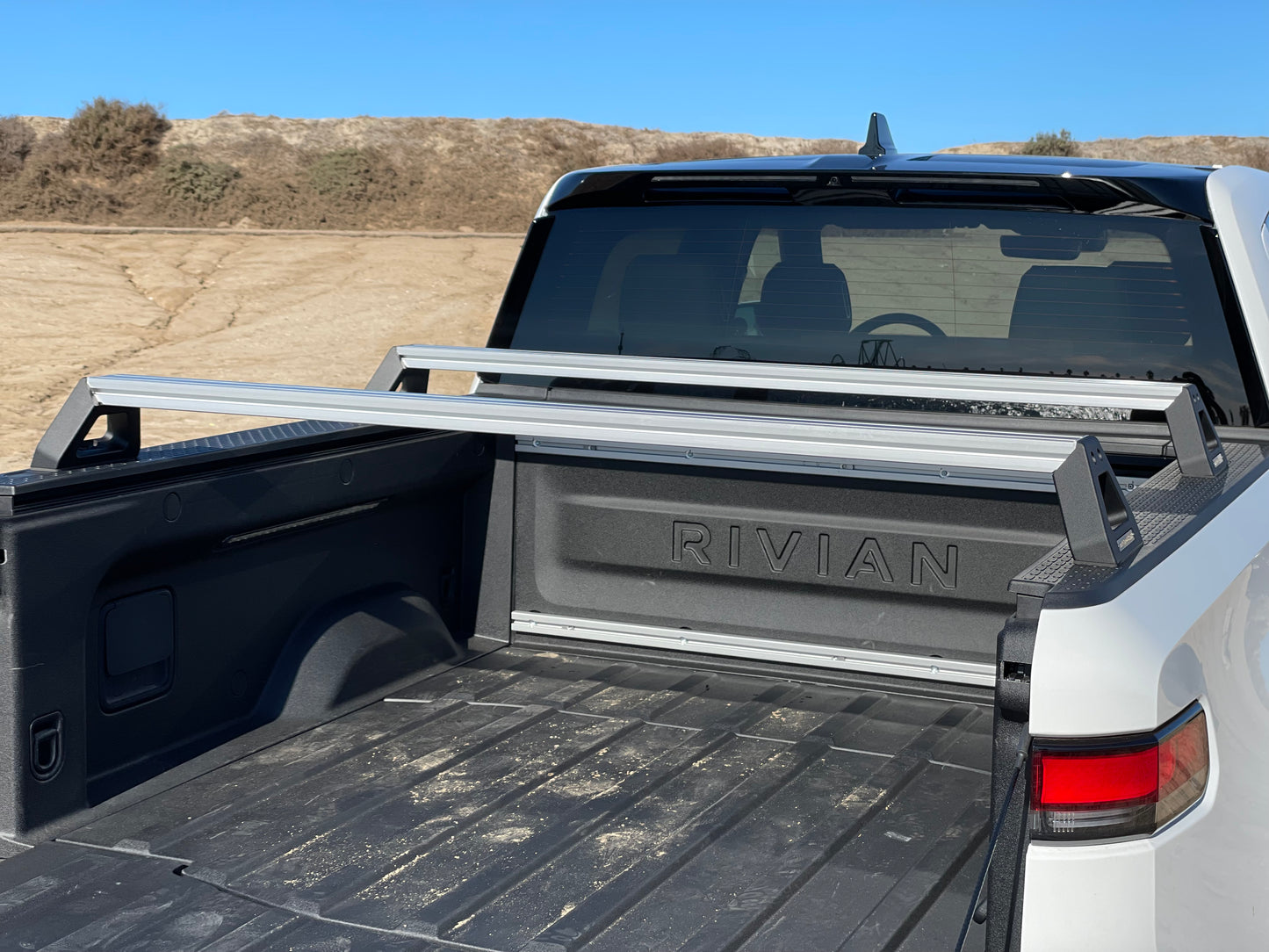

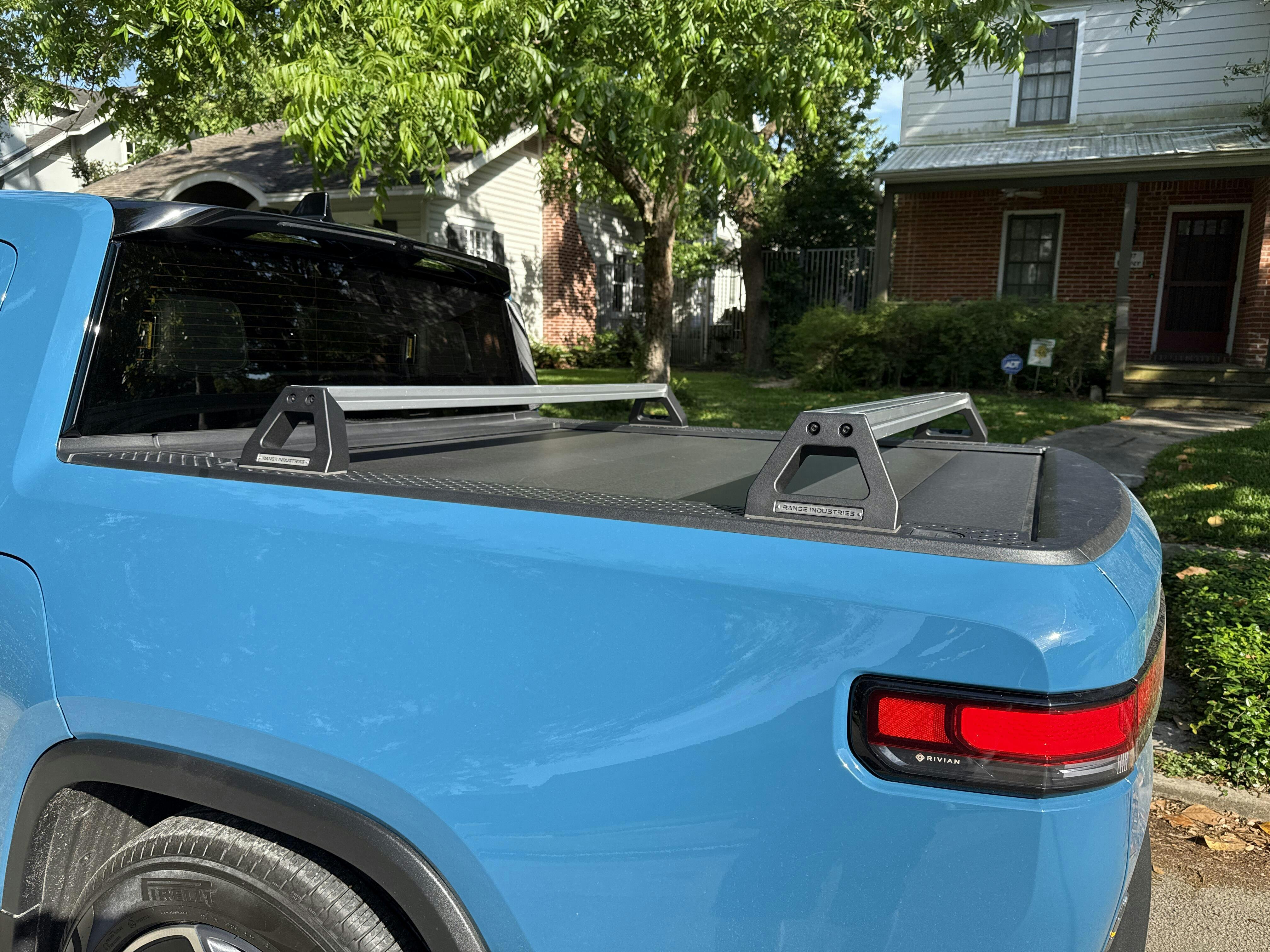

Rivian R1T Badwater Rack System

  • Sale
  • Regular price $775.00

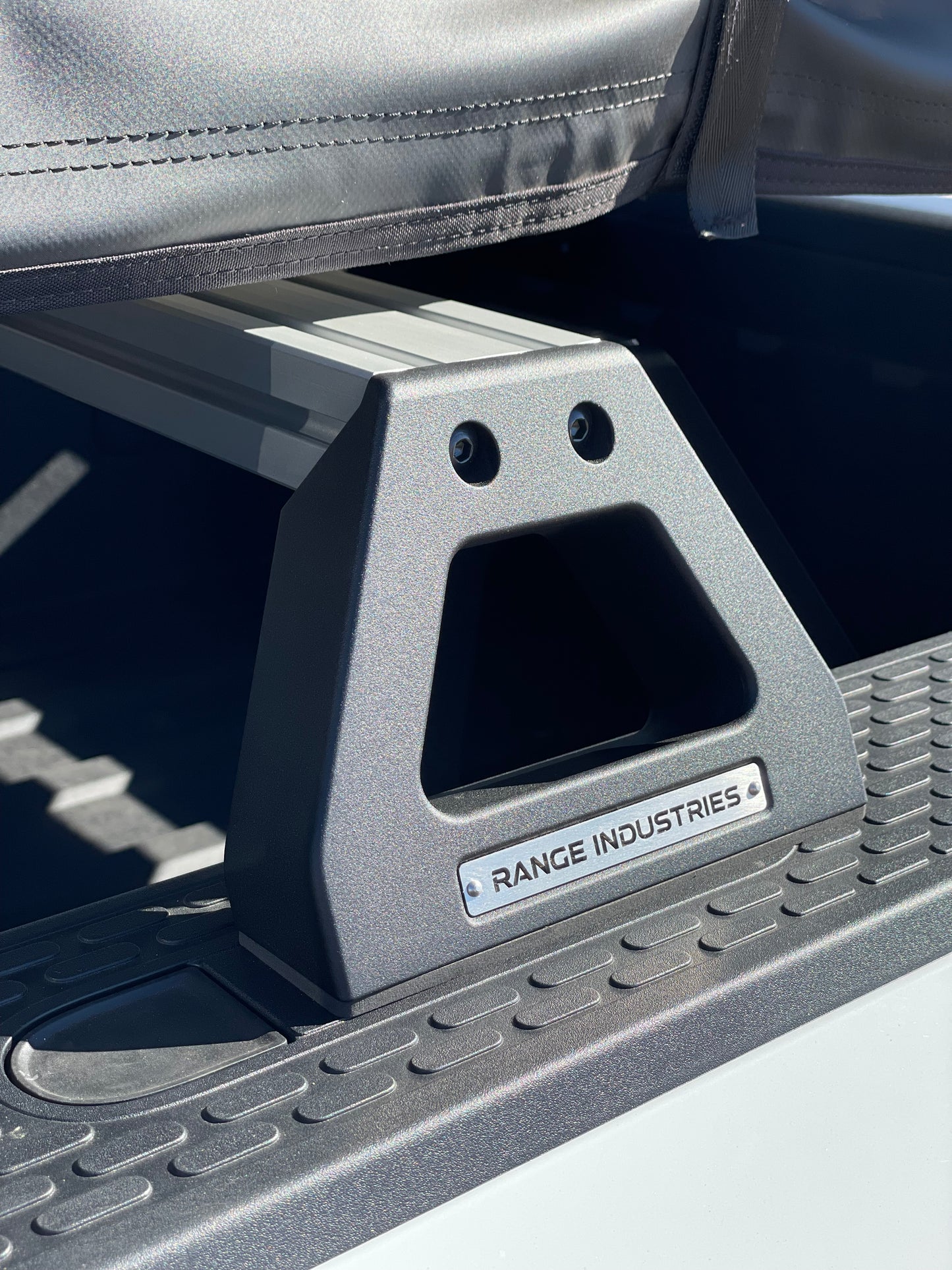

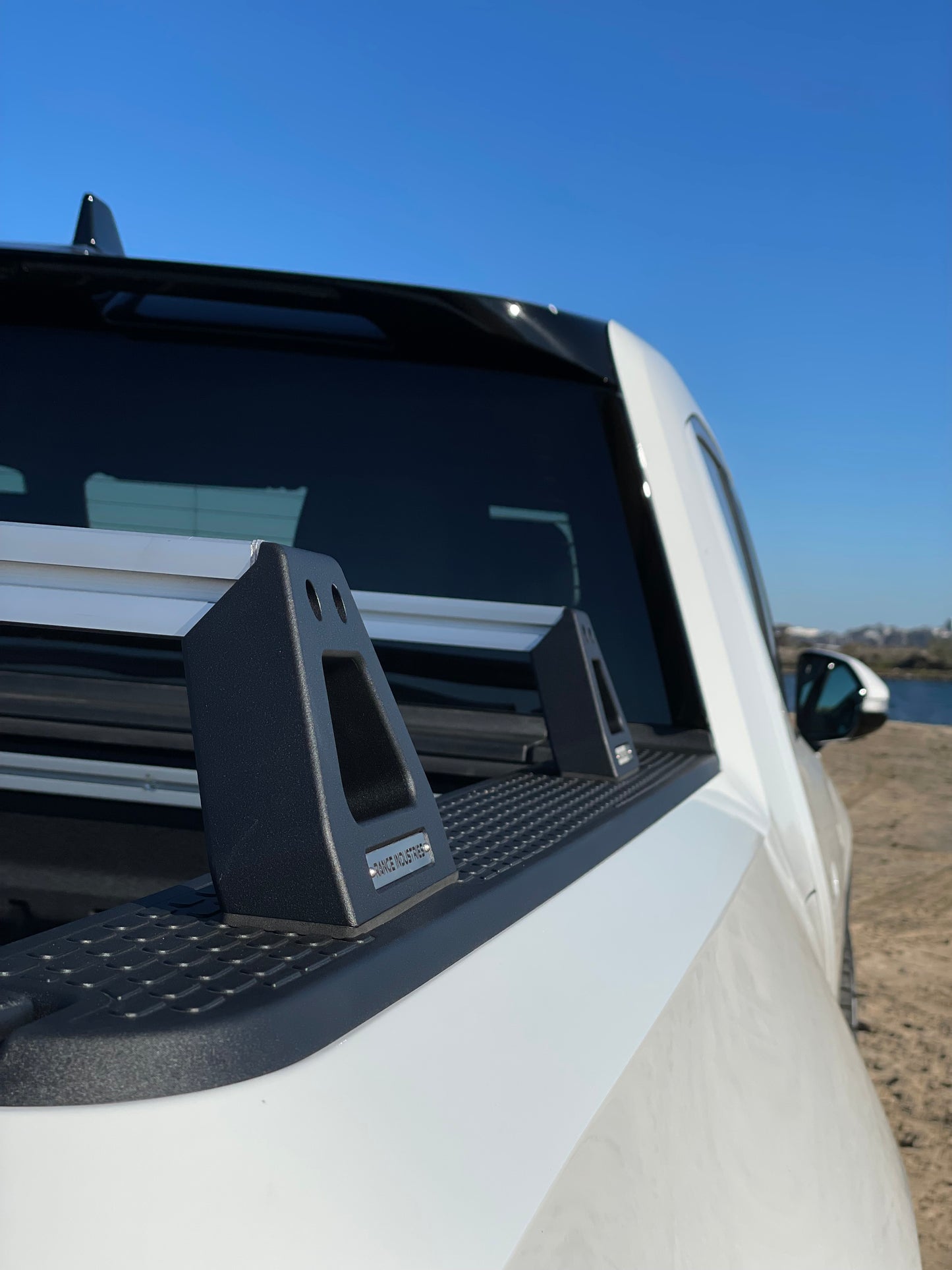

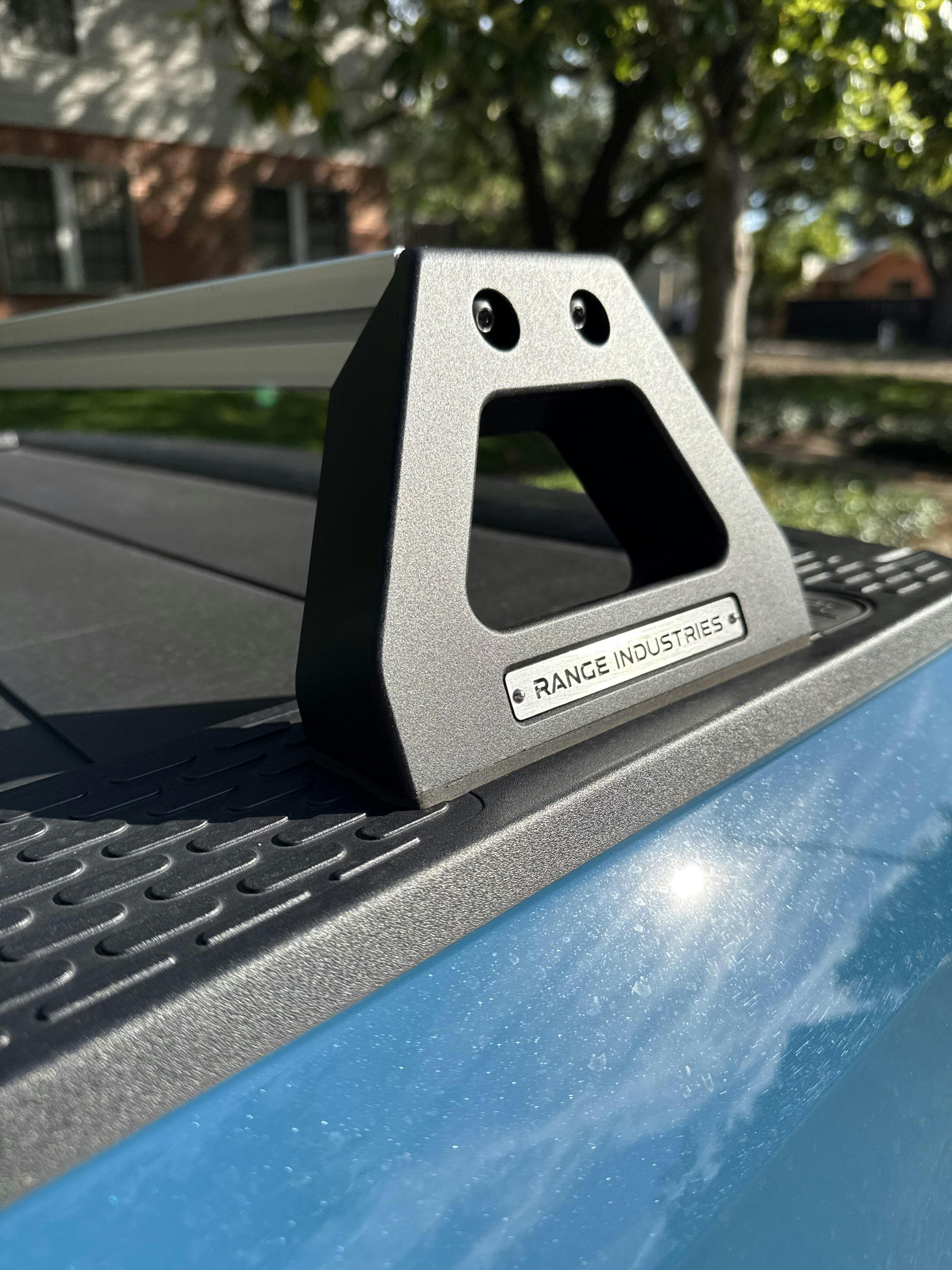

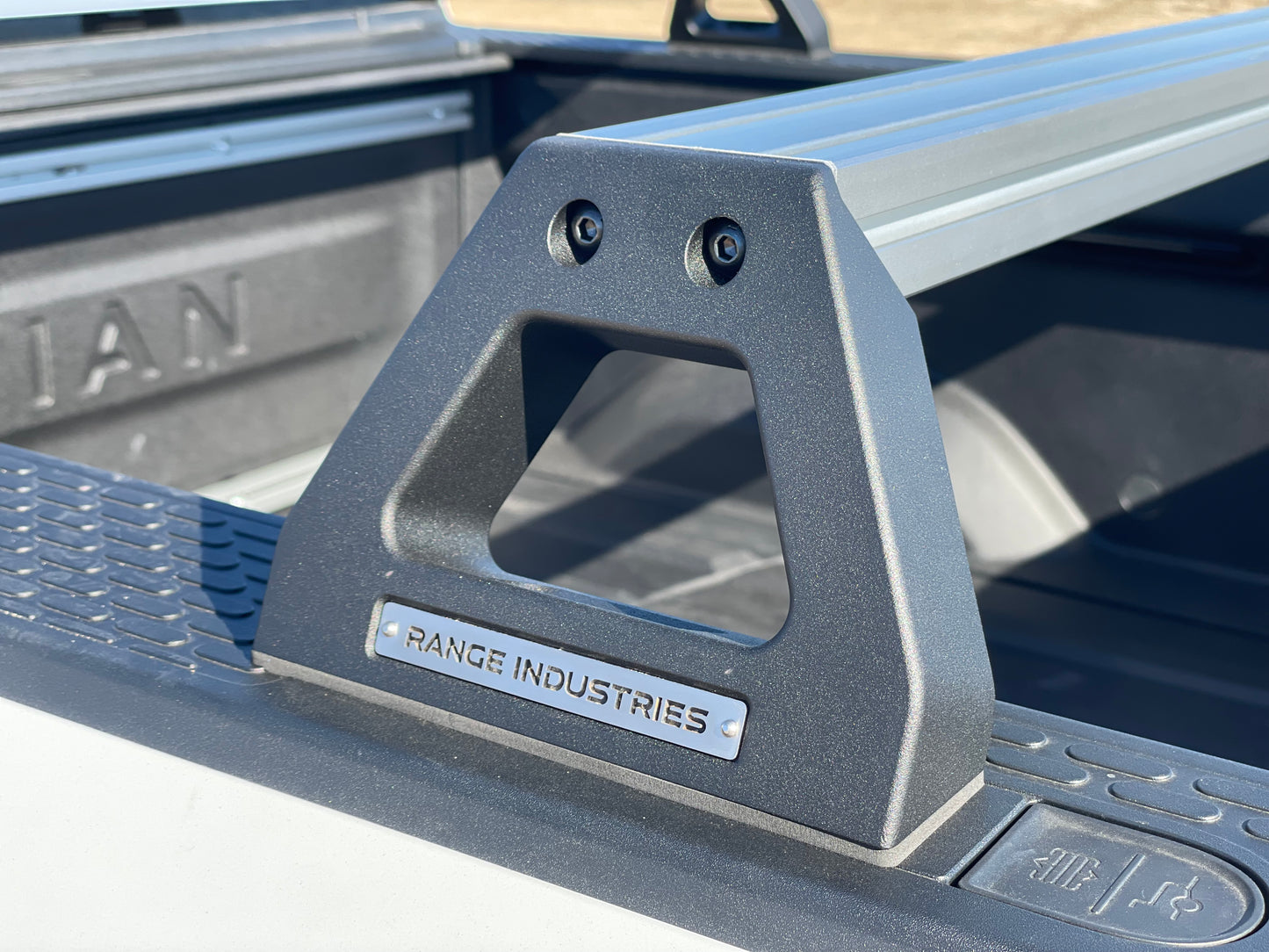

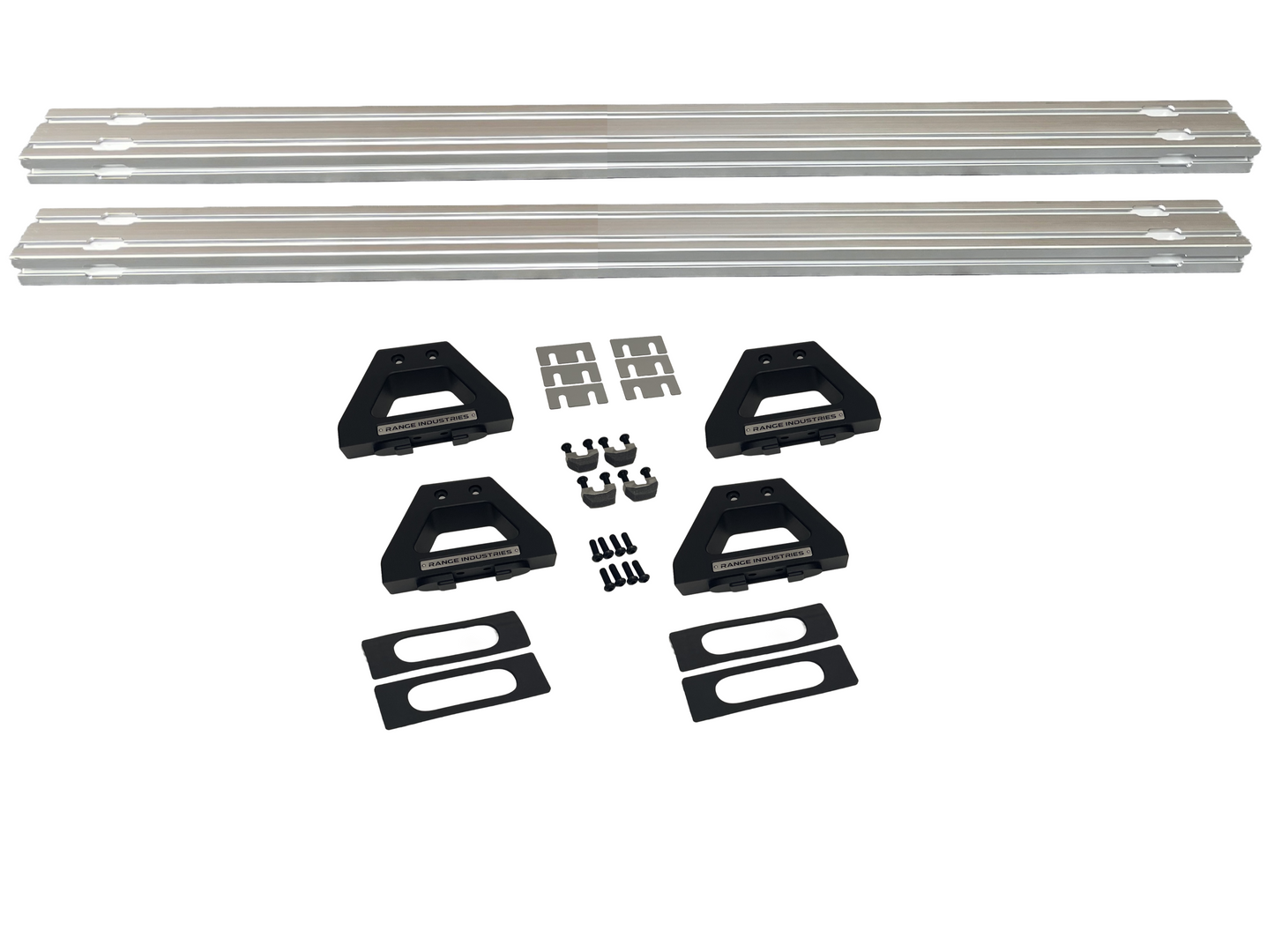

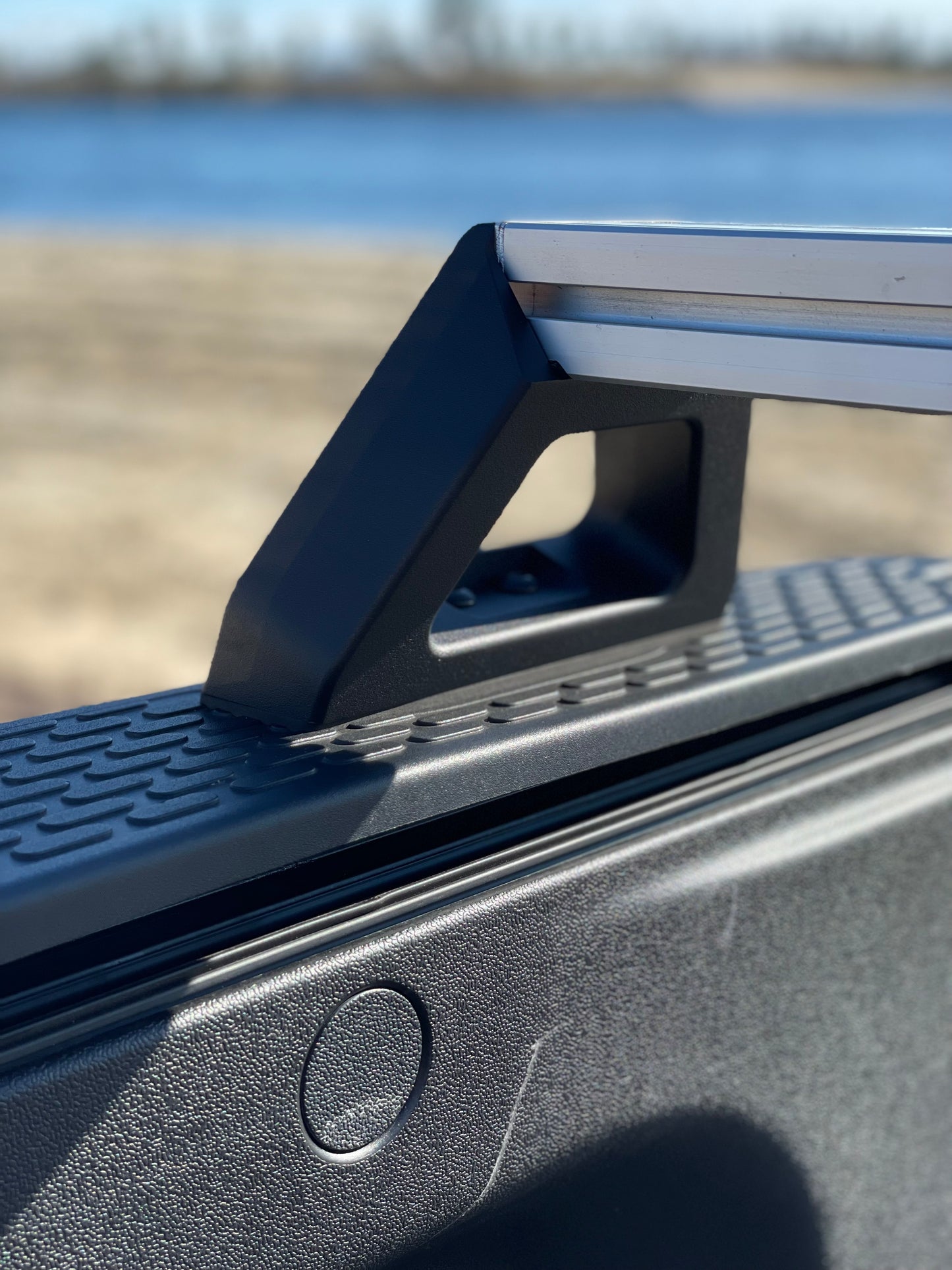

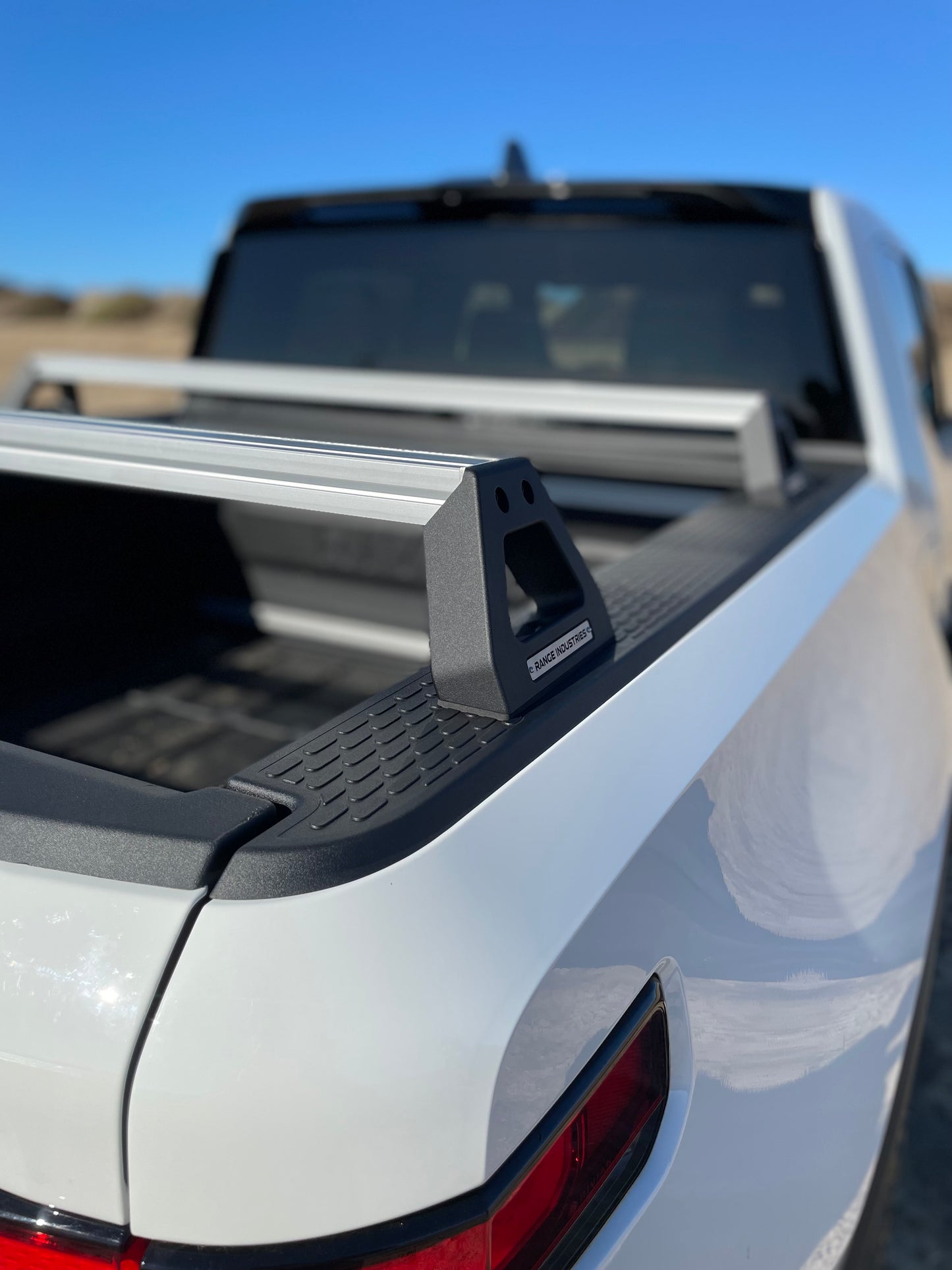

This low profile rack is extremely sturdy and made with only aluminum and stainless steel components. These premium materials ensure this rack will stand up to years of abuse from both heavy use and the elements.  The rack uprights are CNC machined from billet 6061-T6 aluminum and powder coated black to match the appearance of the Rivian bed caps. The crossbars are made from 3" x 1.5" 6063-T6 aluminum and anodized for corrosion resistance. These crossbars are extremely rigid and keep the rack from deflecting under heavy loads. Additionally crossbars are compatible with 8020 accessories, so options for mounting equipment and items are nearly endless. Kit includes 4 uprights, 2 crossbars and all hardware needed to mount.


Current lead time approximately 2 weeks.


  • Load Rating: 300 lbs dynamic, 800 lbs static
  • Height from top of bed rails to top of crossbar: 5"
  • Crossbar width: 54"
  • Spacing between crossbars: 35.9" (outside to outside), 29.9" (inside to inside)
  • Crossbar cross-section: 3" x 1.5"
  • Rack Weight: 32 lbs
